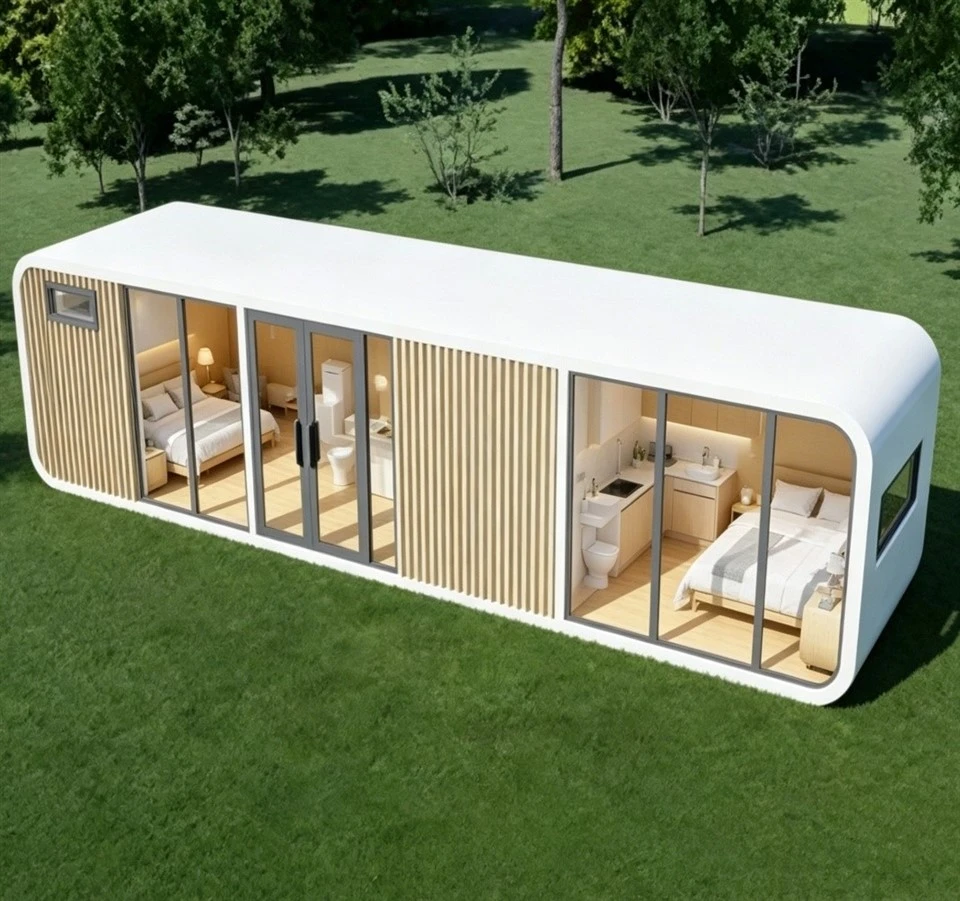

2 Bedrooms 2 Living Rooms Apple Cabin
Rau txhua tus neeg uas xav tau ntau tshaj li ib qho chaw nyob hauv lub tsev prefab - tej zaum qhov chaw zaum thiab ib qho chaw nyob hauv tsev neeg, lossis chav nyob ntxiv rau chav ua haujlwm hauv tsev - 2 Chav pw 2 Chav Nyob Apple Cabin yog qhov kev xaiv dav dav. Chav tsev 13-meter no muaj hlau carved vaj huam sib luag sab nraud thiab xyoob fiber ntau phab ntsa sab hauv, thiab nws los nrog cov cua sov hauv qab hauv cov chaw nyob, ob chav pw sib cais, ob qhov chaw nyob sib txawv, thiab chav dej tag nrho. Nws tuaj txog ua tiav, yog li koj tsis tas yuav tswj hwm qhov project.
Muaj nuj nqi
Cov khoom luv luv
Rau txhua tus neeg uas xav tau ntau tshaj li ib thaj chaw nyob hauv lub tsev prefab - tej zaum yuav yog qhov chaw zaum thiab ib qho chaw sib cais ntawm tsev neeg, lossis chav nyob ntxiv rau chav ua haujlwm hauv tsev -2 Bedrooms 2 Living Rooms Apple Cabinyog ib qho kev xaiv dav dav heev. Chav tsev 13-meter no muaj hlau carved vaj huam sib luag sab nraud thiab xyoob fiber ntau phab ntsa sab hauv, thiab nws los nrog cov cua sov hauv qab hauv cov chaw nyob, ob chav pw sib cais, ob qhov chaw nyob sib txawv, thiab chav dej tag nrho. Nws tuaj txog ua tiav, yog li koj tsis tas yuav tswj hwm qhov project.
Shipping yog tuav nyob rau hauv ib tug 45ft siab-lub voos xwmfab thawv - ib unit rau ib lub thawv - thiab 25.6 square meter sab hauv yog cleverly nteg tawm raws tag nrho ntev ntawm lub cabin. Nws ua haujlwm tau zoo heev rau cov tsev neeg me uas xav tau qhov chaw sib sau ua ke, rau kev nyob - chaw ua haujlwm nyob qhov twg ib thaj chaw nyob dhau los ua chaw ua haujlwm, lossis siab dua - so so so nrog ntau chav kom nthuav tawm.
Product Description
Feem ntau ntev, nqaim prefab units xav zoo li ib txoj hauv kev nrog cov chav daig ntawm ob sab. Cov2 Bedrooms 2 Living Rooms Apple Cabinyog nteg tawm txawv - koj tau txais ob qhov chaw nyob sib txawv ntawm qhov sib txawv raws qhov ntev, ob chav pw, thiab chav dej nyob nruab nrab ntawm lawv. Nws txhais tau tias koj tuaj yeem muaj qhov chaw zaum pem hauv ntej rau cov qhua thiab chav tsev tom qab rau kev so, lossis siv ib cheeb tsam ua chaw ua haujlwm hauv tsev thiab lwm qhov chaw nyob. Tsuas yog 2.25 meters dav, qhov ntev 13-meter muab rau koj xav tsis thoob ntawm chav siv tau.
Sab nrauv siv hlau carved panels nrog ib tug textured, ntoo -grain saib uas tuav zoo sab nraum zoov thiab xav tias tiav ntau tshaj li cov hlau siding. Sab hauv, cov chaw nyob muaj ntoo pem teb nrog hluav taws xob underfloor cua sov - ib qho kev txhim kho zoo uas ua rau qhov chaw zoo nyob hauv huab cua txias. Lub chav da dej tau ua tiav nrog cov khoom siv zoo, thiab txhua yam ntawm cov phab ntsa mus rau lub qhov rooj mus rau qhov hluav taws xob ua tiav ntawm lub Hoobkas. Thaum nws tshwm sim, koj muab tso rau ntawm lub hauv paus npaj, txuas cov khoom siv hluav taws xob, thiab koj npaj mus. Yog tias koj tab tom nrhiav rau lub tsev prefab uas zoo nkaus li zoo li lub tsev me me es tsis yog lub thawv hloov pauv, lub2 Bedrooms 2 Living Rooms Apple Cabinyog tsim nyog xav txog.
Khoom Paub meej
Hlau Carved Vaj Huam Sib Luag Sab nrauv
Cov phab ntsa sab nrauv yog tiav nrog cov hlau carved panels - lawv muaj ib tug textured, ntoo -grain tsos uas zoo li warmer thiab ntau nyob rau hauv lub tiaj tus hlau siding. Tshaj li saib zoo dua, cov vaj huam sib luag yog huab cua- tiv taus, tsis txhob ploj mus sai hauv lub hnub muaj zog, thiab ntxiv me ntsis ntawm cov nqi rwb thaiv tsev ntxiv. Lawv kuj ntxuav tau yooj yim nrog lub hose xwb.
Xyoob Fiber Sab hauv nrog XPS rwb thaiv tsev
Sab hauv, cov phab ntsa yog xyoob fiber ntau pawg tshaj XPS extruded polystyrene rwb thaiv tsev. Cov xyoob tiav yog du thiab sov rau lub qhov muag - ib kauj ruam loj los ntawm qhov liab qab lossis yooj yim - vaj huam sib luag sab hauv koj pom ntawm cov khoom pheej yig dua. XPS txheej ua ob lub luag haujlwm, pab nrog kev tswj qhov kub thiab txias ntawm cov chav.
Ford Blue Tempered Insulated iav
Txhua lub qhov rais thiab qhov rooj iav siv 5+12+5 Ford Blue tempered insulated iav. Lub xiav tint txiav glare thiab txo lub hnub ci tshav kub rau hnub kub, thaum lub sij hawm insulated kev tsim pab ua kom sov thaum lub caij ntuj no. Tempered iav kuj yog qhov kev xaiv zoo dua - muaj zog dua thiab tsis tshua muaj kev raug mob yog tias nws tawg.
Welded Corrugated Hlau Roof
Lub ru tsev yog welded corrugated steel tsim - khoom, structurally rigid, thiab ua rau los nag dej kom zoo. Vim tias nws yog welded es tsis yog sib dhos xwb, koj tau txais cov ntsiab lus xau tsawg dua. Tag nrho cov sealing tiav ntawm lub Hoobkas ua ntej xa khoom, yog li cov teeb meem ntawm lub ru tsev tsis tshua muaj.
Ntoo Flooring nrog hluav taws xob underfloor cua sov hauv thaj chaw nyob
Qhov no yog qhov kev txhim kho zoo uas koj tsis pom ntawm txhua lub tsev prefab. Cov chaw nyob muaj cov flooring tiag tiag ntawm cov cement fiber board, nrog hluav taws xob underfloor cua sov ua rau hauv. Lub chav da dej tau txais cov yas hauv pem teb es tsis txhob, uas ua rau kev nkag siab rau qhov chaw ntub dej.
Chav da dej puv nrog zoo Fixtures
Lub chav da dej yog qhov zoo tshaj qhov koj xav tau rau chav tsev compact. Muaj lub qhov rooj nkag qhov rooj, lub qhov rooj iav zawv zawg da dej, ib qho - chav dab dej nrog lub iav txee saum toj no, chav dej, chav ntub dej - cais cais qhuav, lub taub dej nag da dej, tag nrho - hauv - ib da dej rhaub, thiab UV ya raws - cov phab ntsa resistant. Nws yog chav ntub dej kom zoo, tsis yog qhov kev xav tom qab.
Ntau qhov rooj hom rau ntau qhov chaw
Cov chaw sib txawv tau txais ntau hom qhov rooj, uas yog lub cim ntawm kev xav tsim. Lub ntsiab nkag yog thermal- tawg aluminium ob lub qhov rooj - zoo rau rwb thaiv tsev thiab zoo li ntau heev. Hauv koj tau txais cov qhov rooj grille thiab iav zawv zawg qhov rooj rau chav dej thiab chav da dej, txhua tus xaiv rau qhov ua haujlwm zoo tshaj plaws hauv qhov chaw tshwj xeeb.
Thermal -Tso Aluminium Qhov rai nrog cov ntxaij vab tshaus
Koj tau txais ob qho tib si sab saum toj- dai rooj qhov rais thiab zawv zawg qhov rais thoob plaws hauv - tag nrho cov thermal- tawg txhuas nrog ua -hauv nqa- cov ntxaij vab tshaus. Lub thermal- tawg tsim ua kom tsis txhob muaj cua sov los ntawm cov hlau ncej, uas ua rau muaj qhov sib txawv tiag tiag rau kev siv lub zog. Cov ntxaij vab tshaus txhais tau tias koj tuaj yeem qhib txhua yam kom huab cua ntshiab thaum lub caij ntuj sov tsis muaj yoov tshaj cum los.
Ob Qhov Chaw Nyob
Dab tsi ua rau tus qauv no sawv tawm yog ob qhov chaw nyob sib txawv raws li 13-meter ntev. Koj tuaj yeem siv pem hauv ntej ua chav zaum rooj lossis chav qhua thiab sab nraub qaum ua chav tsev neeg xws li, lossis tig ib qho rau hauv chav ua haujlwm hauv tsev. Rau chav tsev nqaim, muaj ob thaj chaw sib cais ua rau qhov chaw xav tias loj dua thiab ua haujlwm zoo dua.
Ob chav pw nyob rau sab nraud
Ob chav pw zaum ntawm qhov sib txawv ntawm chav tsev, sib cais los ntawm cov chaw nyob thiab chav dej. Nws txhais tau tias kev ceev ntiag tug zoo dua rau leej twg siv txhua chav pw - pab tau rau tsev neeg, cov phooj ywg hauv chav, lossis yog ib chav pw yog rau cov qhua. Ob leeg tau qhov rais thiab qhov chaw txaus rau lub txaj zoo.
Cua Conditioning Pre-Nruam
Lub tshuab cua txias yog suav nrog raws li tus qauv, uas yog ib qho tsawg dua koj yuav tsum tau los thiab nruab koj tus kheej. Ua ke nrog cov phab ntsa rwb thaiv tsev thiab cov cua sov hauv qab, nws txhais tau hais tias lub tsev nyob tau zoo xyoo - puag ncig yam tsis muaj kev ua haujlwm ntxiv ntawm koj qhov.
Xa tiav, Zero On -Site Build
Qhov loj tshaj tswv yim zoo ntawm cov2 Bedrooms 2 Living Rooms Apple Cabinyog tias nws tshwm sim ua ib lub tsev tiav lawm. Tsis muaj cov neeg cog lus, tsis muaj sijhawm tsim kho, tsis muaj plua plav thiab cuam tshuam. Teem nws rau ntawm lub hauv paus npaj kom zoo, sib txuas dej, hluav taws xob, thiab tso dej, thiab koj tuaj yeem pib siv nws nyob rau hauv ib hnub. Rau ob-chaw pw, ob-nyob- chav tsev nyob, qhov nrawm thiab yooj yim yog qhov nyuaj rau kev sib tw.
Khoom Parameters
|
Specification |
Paub meej |
|
Sab nraud Dimensions |
13000mm (L) × 2250mm (W) × 2450mm (H) |
|
Sab hauv Dimensions |
12800mm (L) × 2000mm (W) × 2250mm (H) |
|
Tag nrho Internal Area |
25.6 ㎡ |
|
Chav ntsuas hnyav |
Kwv yees li . 4.8 tons |
|
Chaw thau khoom kom muaj nuj nqis |
1 units rau 45HC thawv |
|
Pem Teb Plan |
2 chav pw + 2 chaw nyob + 1 chav dej |
|
Sab hauv phab ntsa khoom |
Xyoob fiber ntau vaj huam sib luag + XPS rwb thaiv tsev board |
|
Sab nrauv phab ntsa khoom |
Hlau carved vaj huam sib luag |
|
Hom iav |
5+12+5 Ford Blue tempered iav insulated |
|
Cov ntaub pua tsev |
Welded corrugated steel ru tsev |
|
Qhov chaw nyob Flooring |
Cement fiber board puag + ntoo flooring + hluav taws xob underfloor cua sov |
|
Chav dej Flooring |
Cement fiber board puag + yas pem teb npog |
|
Cov khoom siv suav nrog |
Cua txias chav tsev |
|
Chav ua noj / txee |
Tsis suav nrog (customizable) |
|
Chav dej |
Grille qhov rooj, iav zawv zawg qhov rooj, ib qho - thooj dab dej, daim iav txee, chav dej, ntub- muab faib qhuav, lub taub hau da dej, tag nrho - hauv- ib da dej rhaub, UV ya raws - boards resistant |
|
Qhov rooj nkag |
Thermal - tawg aluminium ob lub qhov rooj |
|
Qhov Rooj sab hauv |
Grille qhov rooj, iav zawv zawg qhov rooj |
|
Qhov rai |
Thermal-tuag txhuas sab saum toj- dai qhov rais (nrog cov ntxaij vab tshaus) + thermal- tawg aluminium zawv zawg qhov rais (nrog cov ntxaij vab tshaus) |
|
Cia siab rau Kev Pabcuam Lub Neej |
15+ xyoo nrog kev tu kom zoo |
